Compact HRV High Efficiency Top Port Vertical Heat Recovery Ventilator

Short Description:

  • Top Ported, compact design
  • Control included with 4-mode operation
  • Top air outlets/outlets
  • EPP inner structure
  • Counterflow heat exchanger
  • Heat recovery efficiency up to 95%
  • EC fan
  • Bypass function
  • Machine body control + remote control
  • Left or right type optional for installation


Product Detail

FAQ

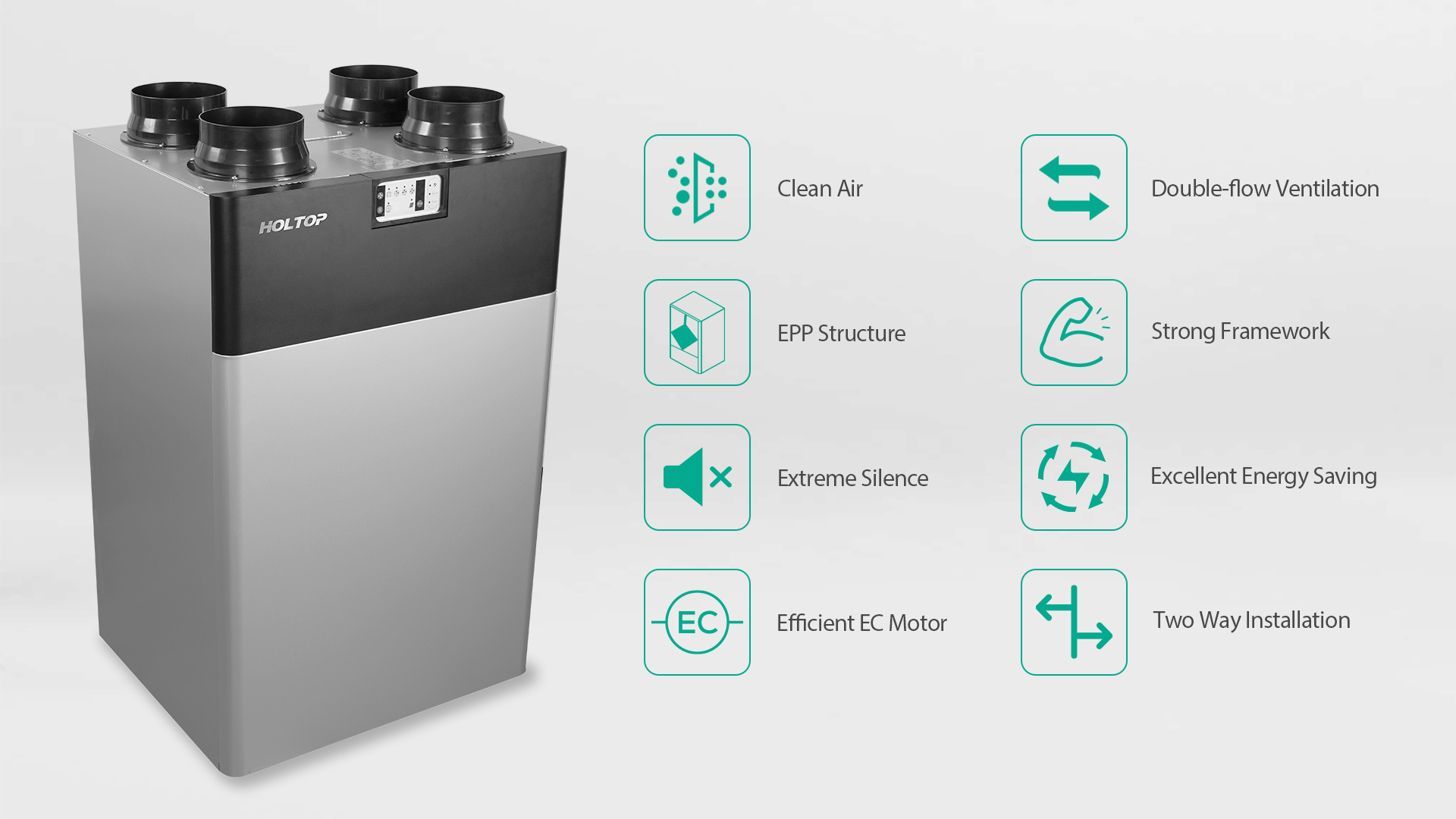

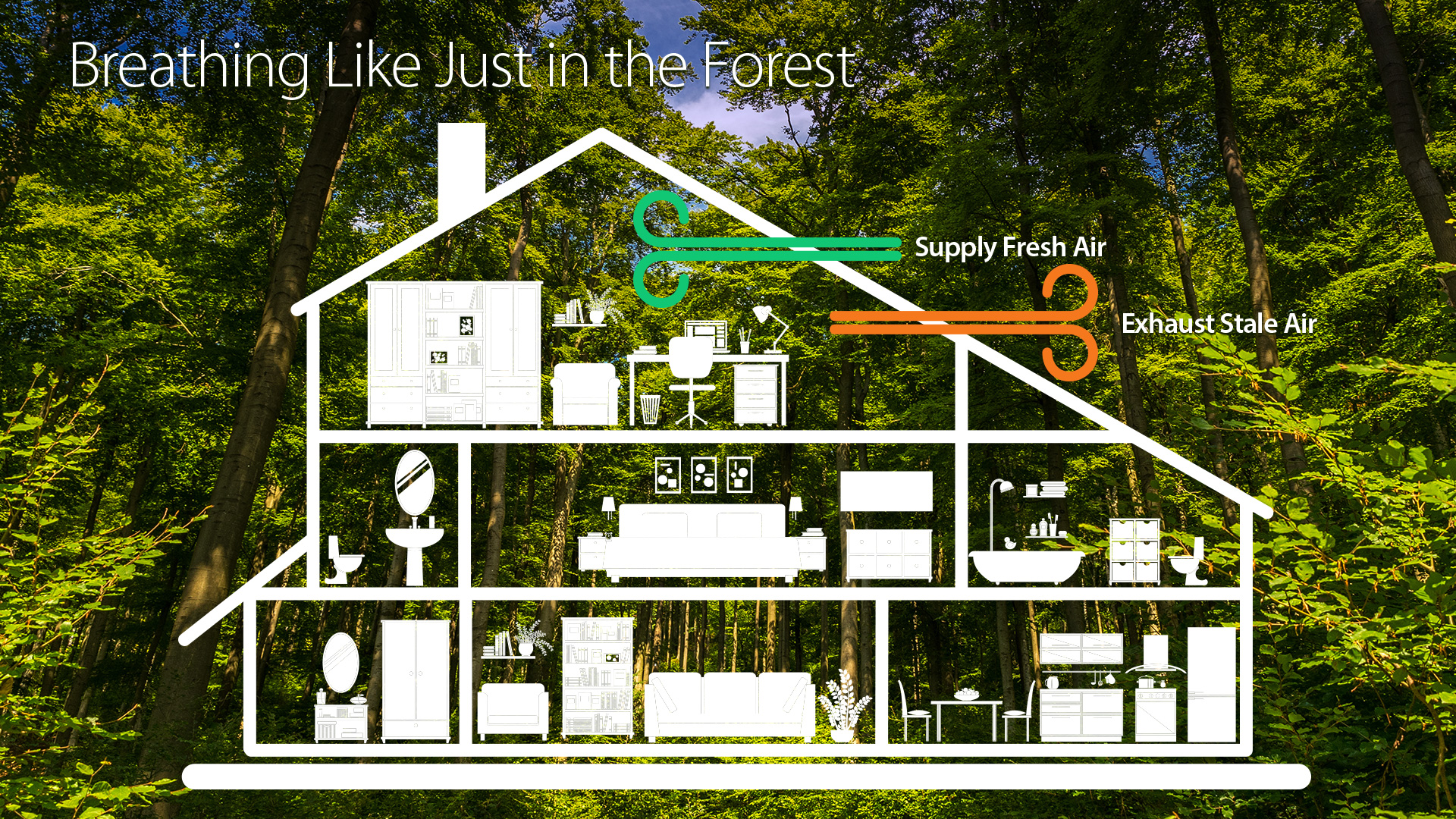

Enjoy the refreshing effect of opening a window or door while preserving indoor comfort and system efficiency. This comfort fresh air heat recovery ventilator offers the ability to remove moisture from incoming air during hot, steamy months and can supply a refreshing infusion of outdoor air all year long. It’s the perfect addition to your modestly-sized home.

HRV 02

Top port, compact unit. Ideally suited for tight installations.
Top Ported, compact design
Control included with 4-mode operation
Top air outlets/outlets
EPP inner structure
Counterflow heat exchanger
Heat recovery efficiency up to 95%
EC fan
Bypass function
Machine body control + remote control
Left or right type optional for installation

HRV 03

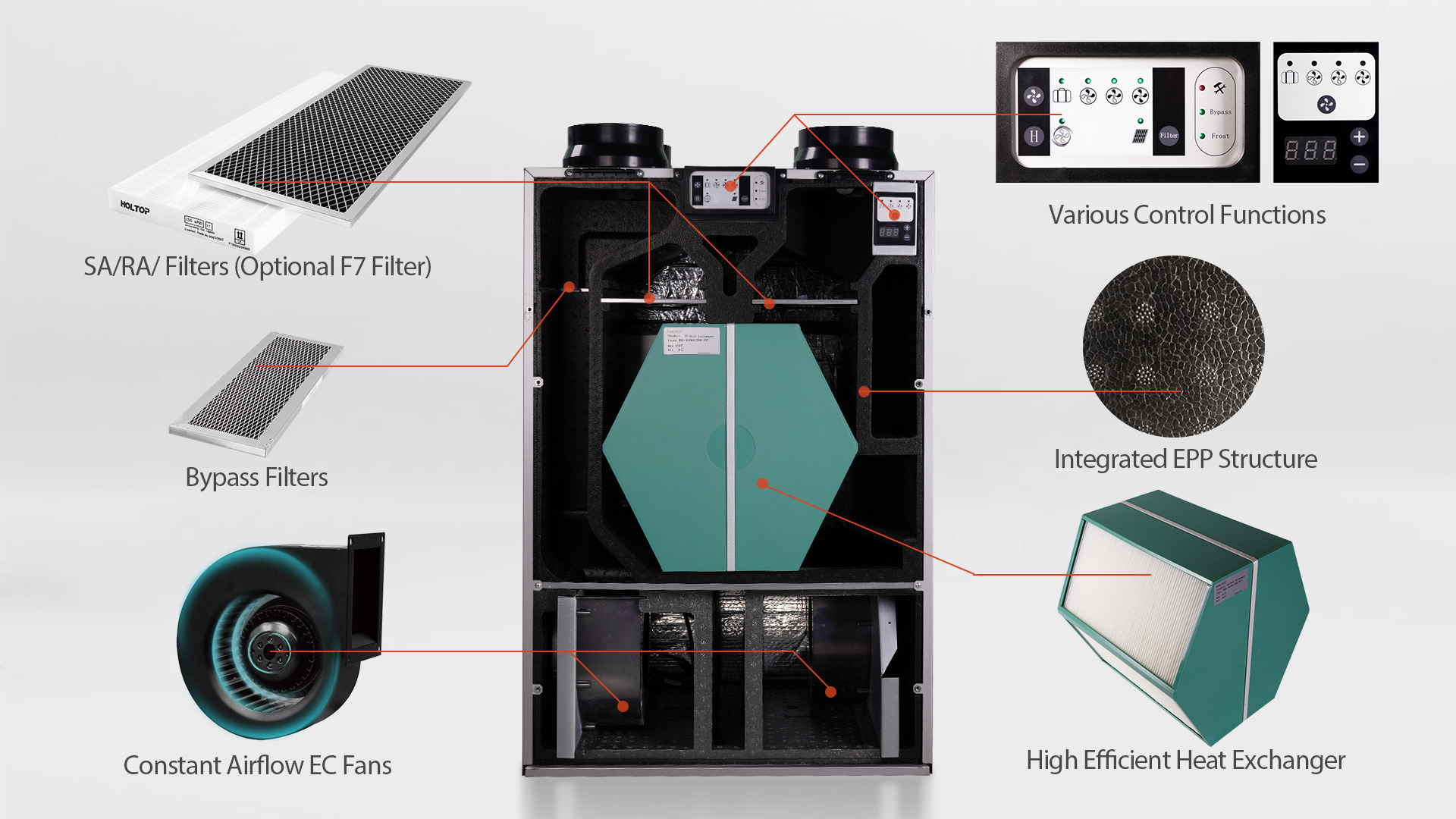

Structure of Top Ports Vertical Compact Heat Recovery Ventilator

HRV 04

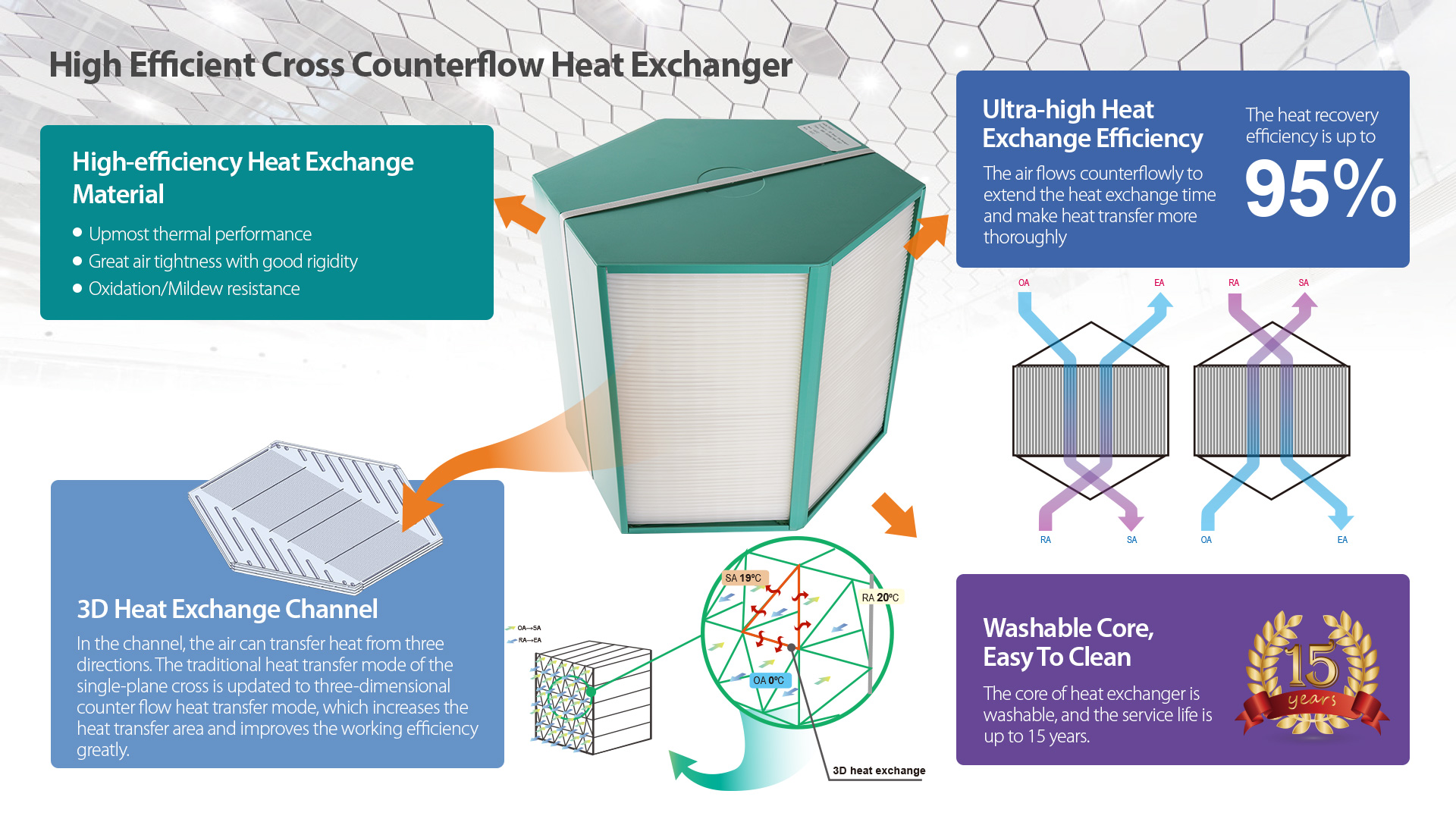

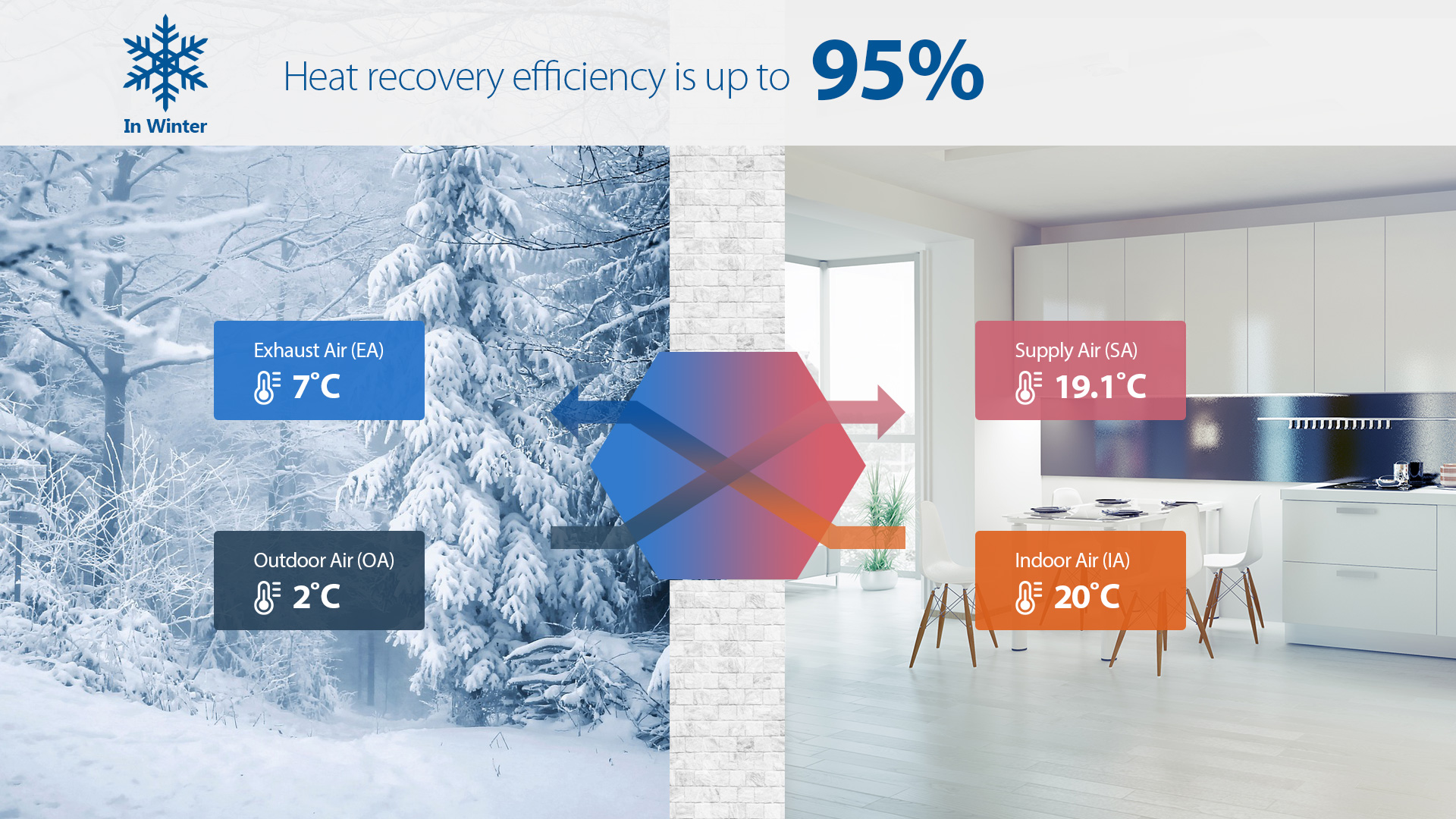

Heat exchanger for Top Port Vertical Heat Recovery Ventilator

HRV 05
HRV 06
HRV 07

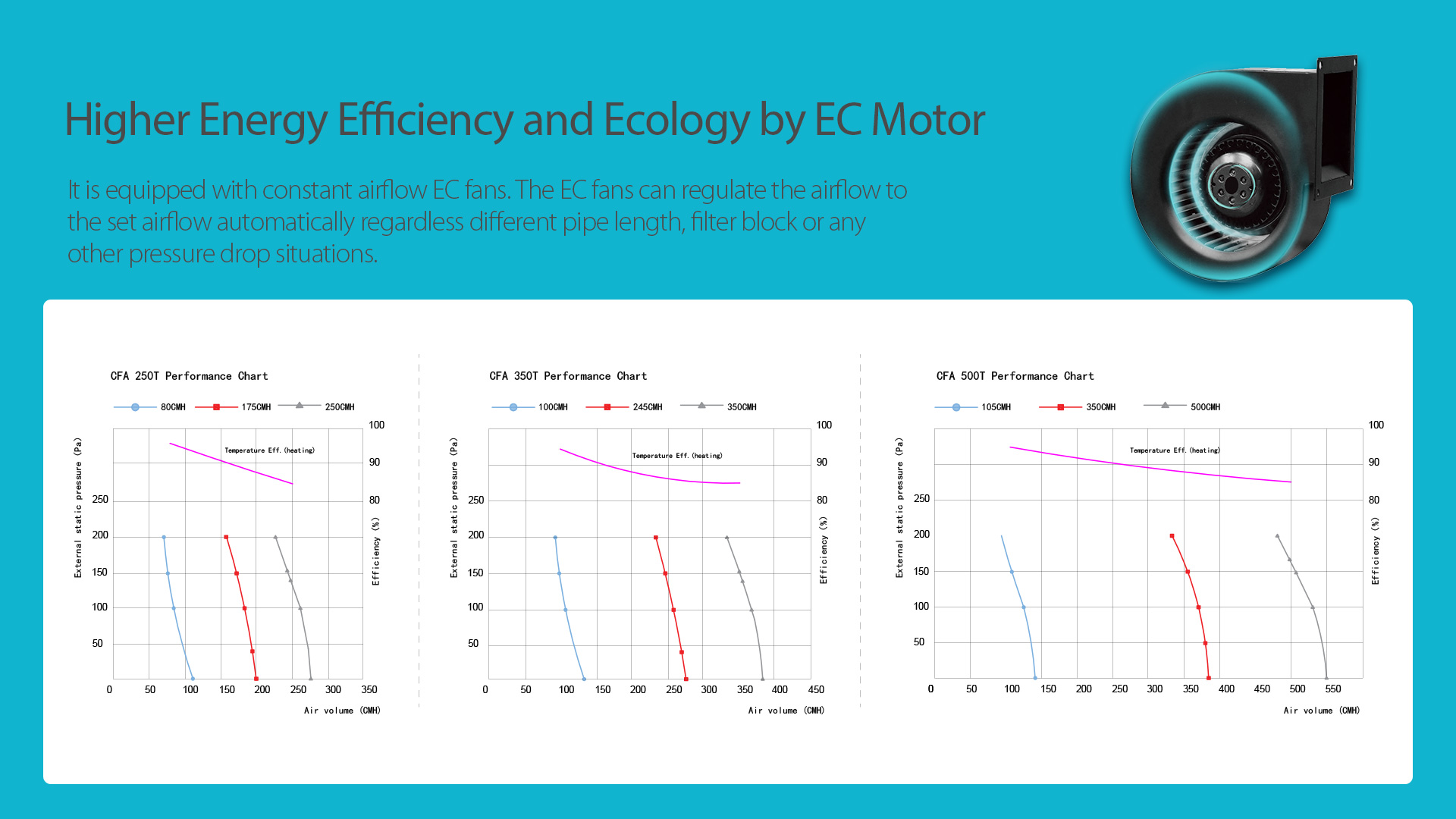

Motor for Top Port Vertical Heat Recovery Ventilator

HRV 08

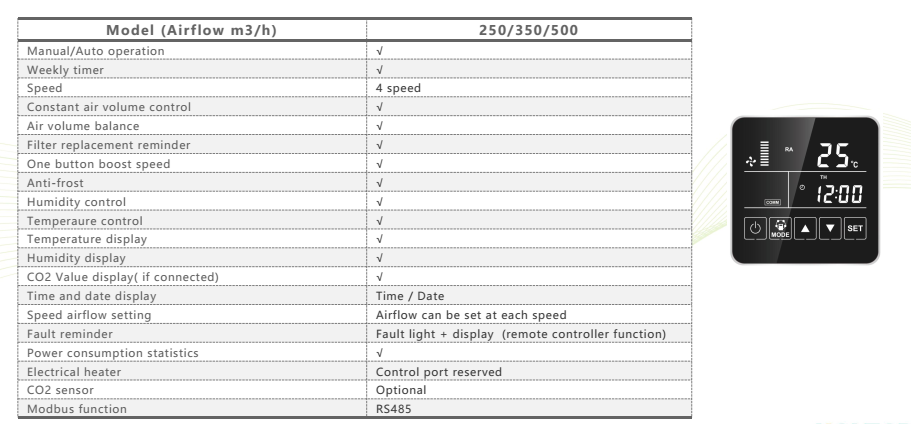

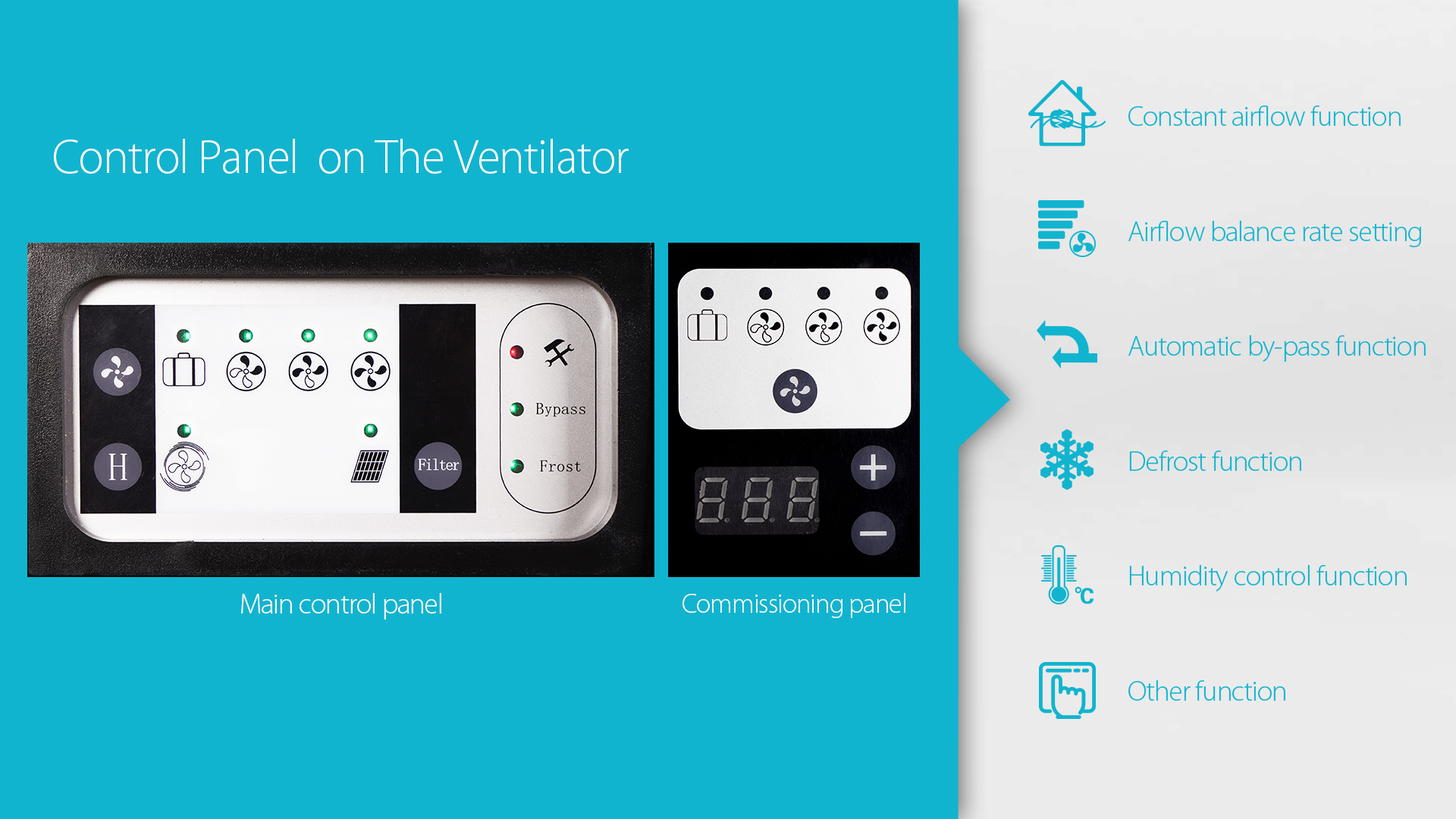

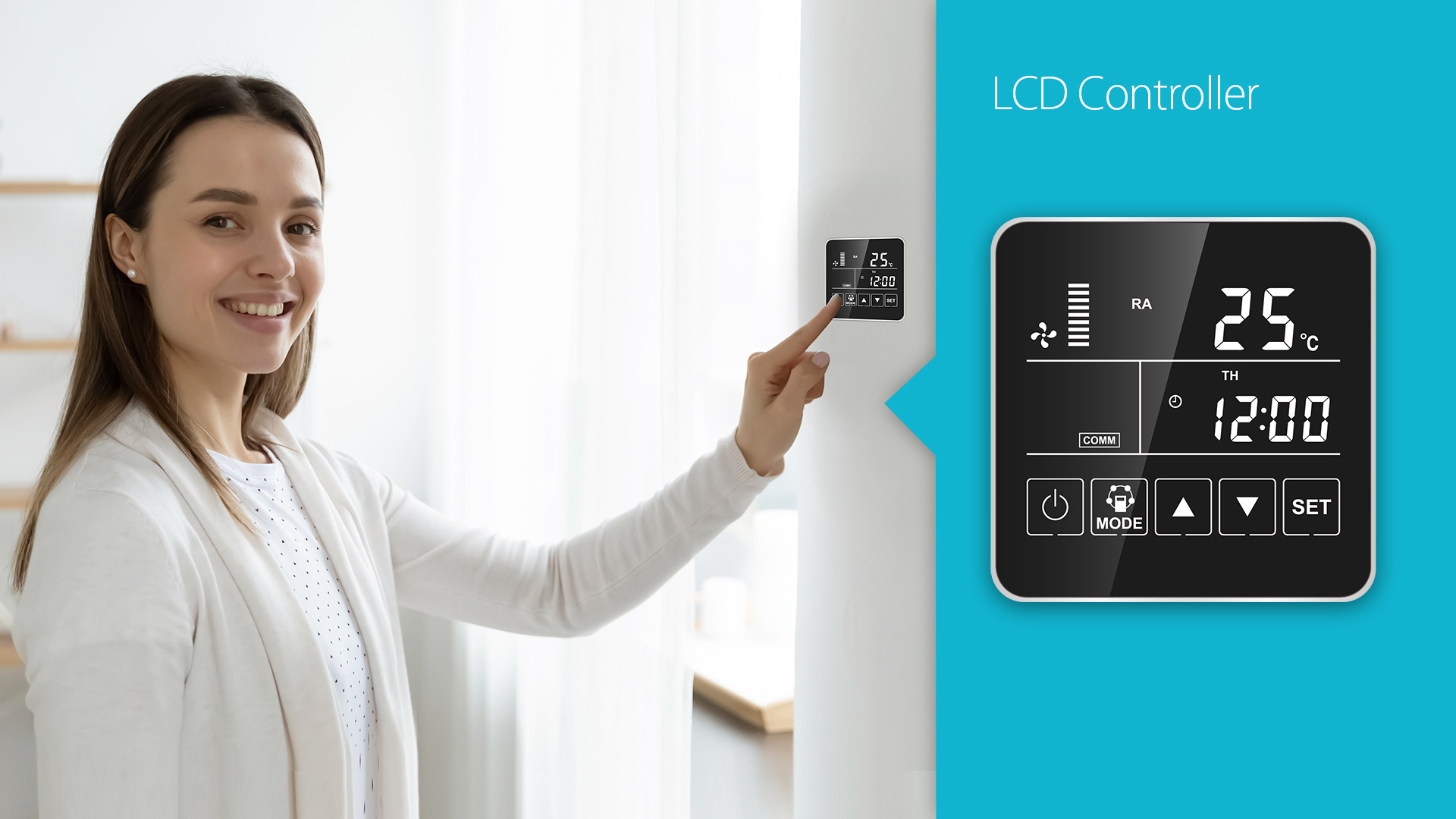

Controller for Top Port Vertical Heat Recovery Ventilator

HRV 09
HRV 10
HRV 11

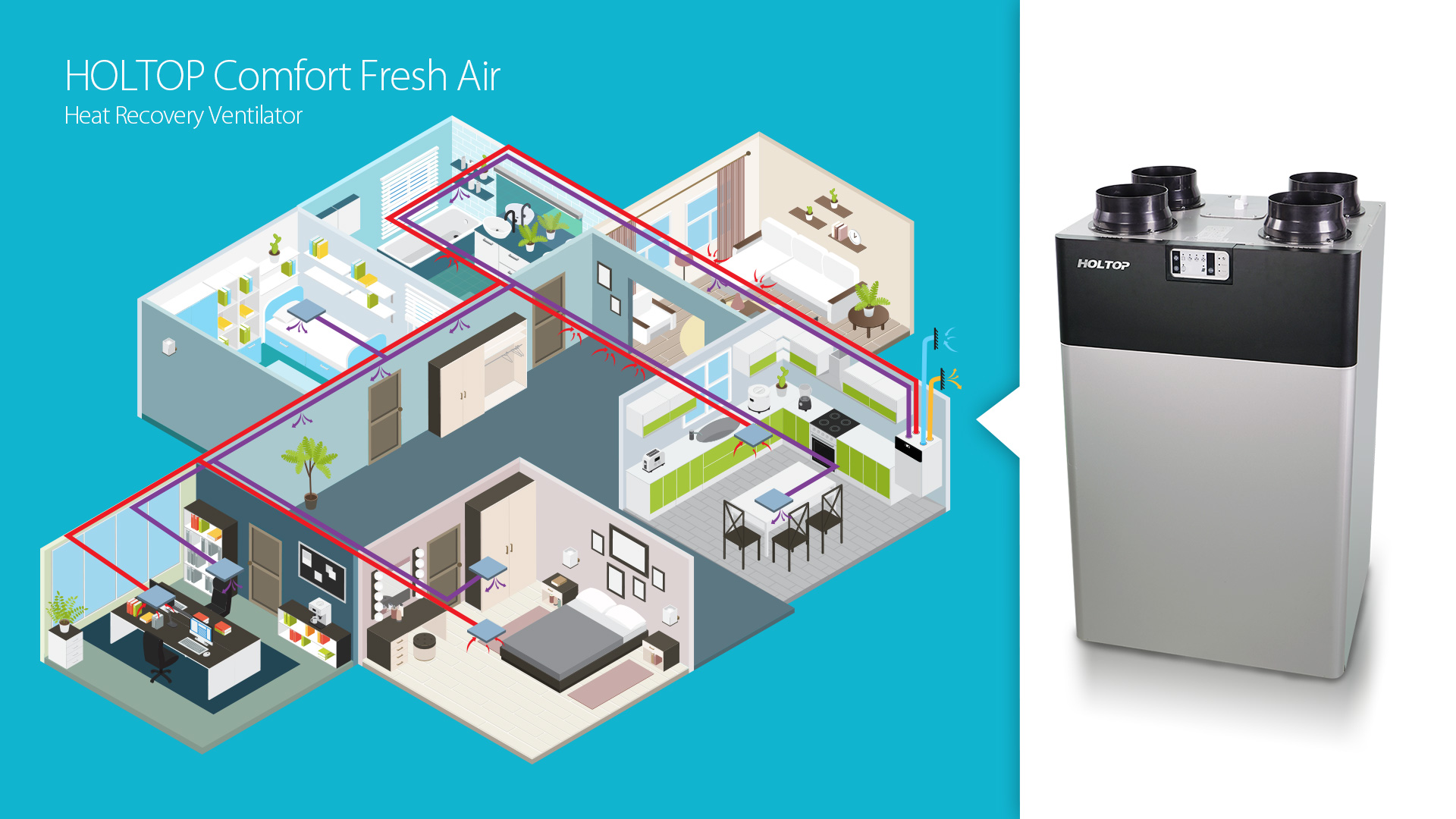

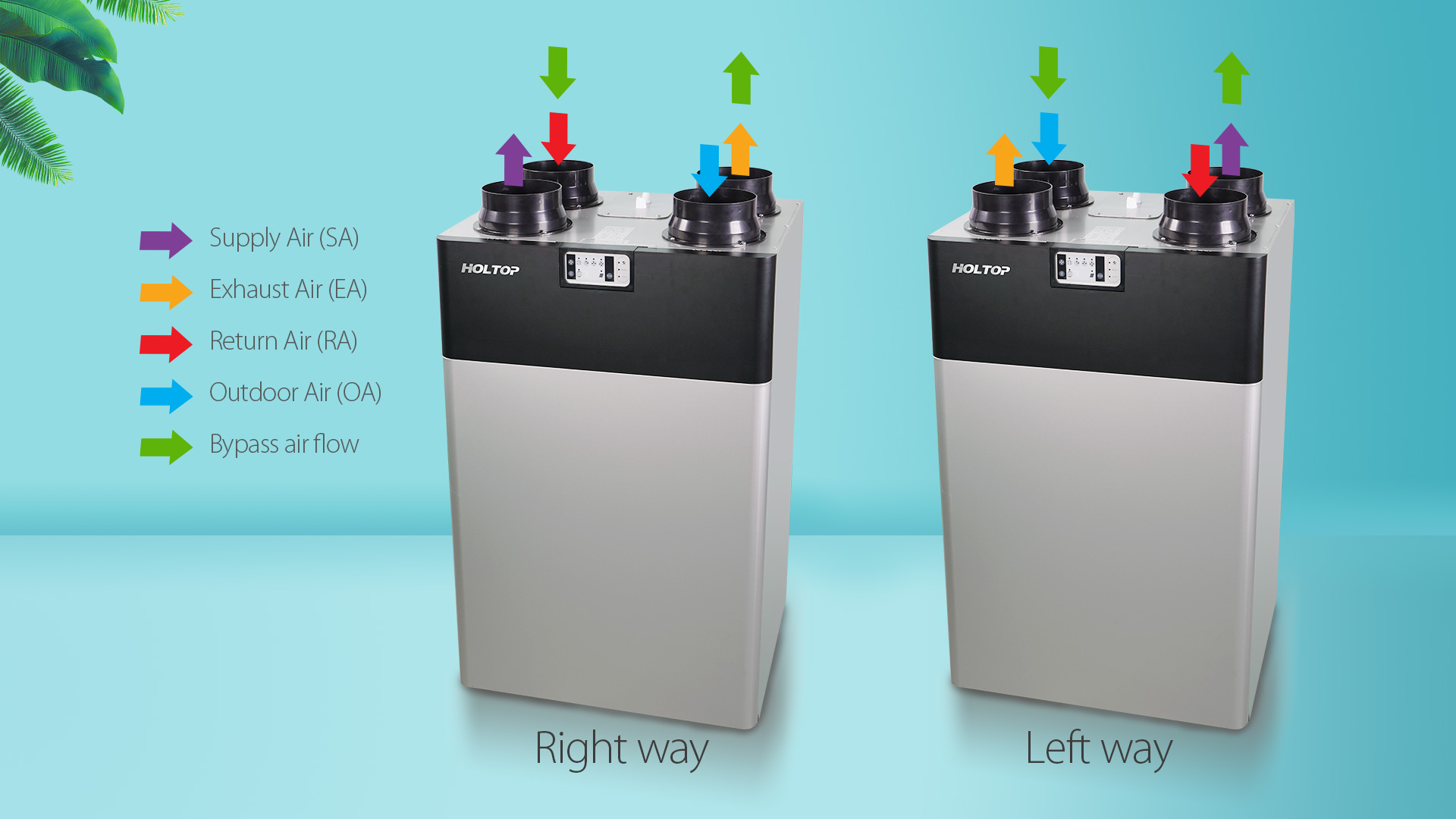

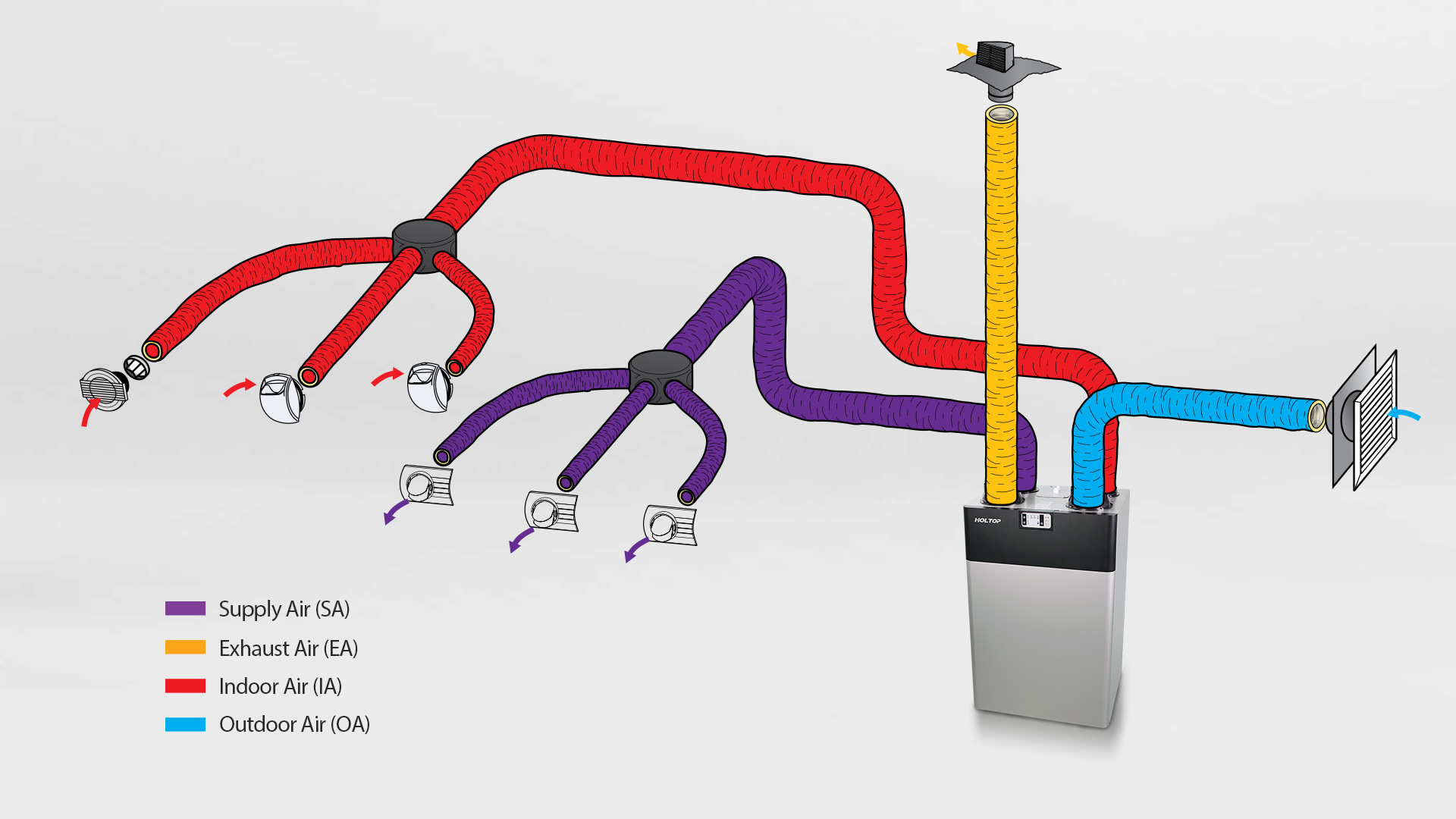

Installation for Top Port Vertical Heat Recovery Ventilator

vertical heat recovery ventilator
vertical heat recovery ventilator
vertical heat recovery ventilator

Certificates for Top Port Vertical Heat Recovery Ventilator

vertical heat recovery ventilator

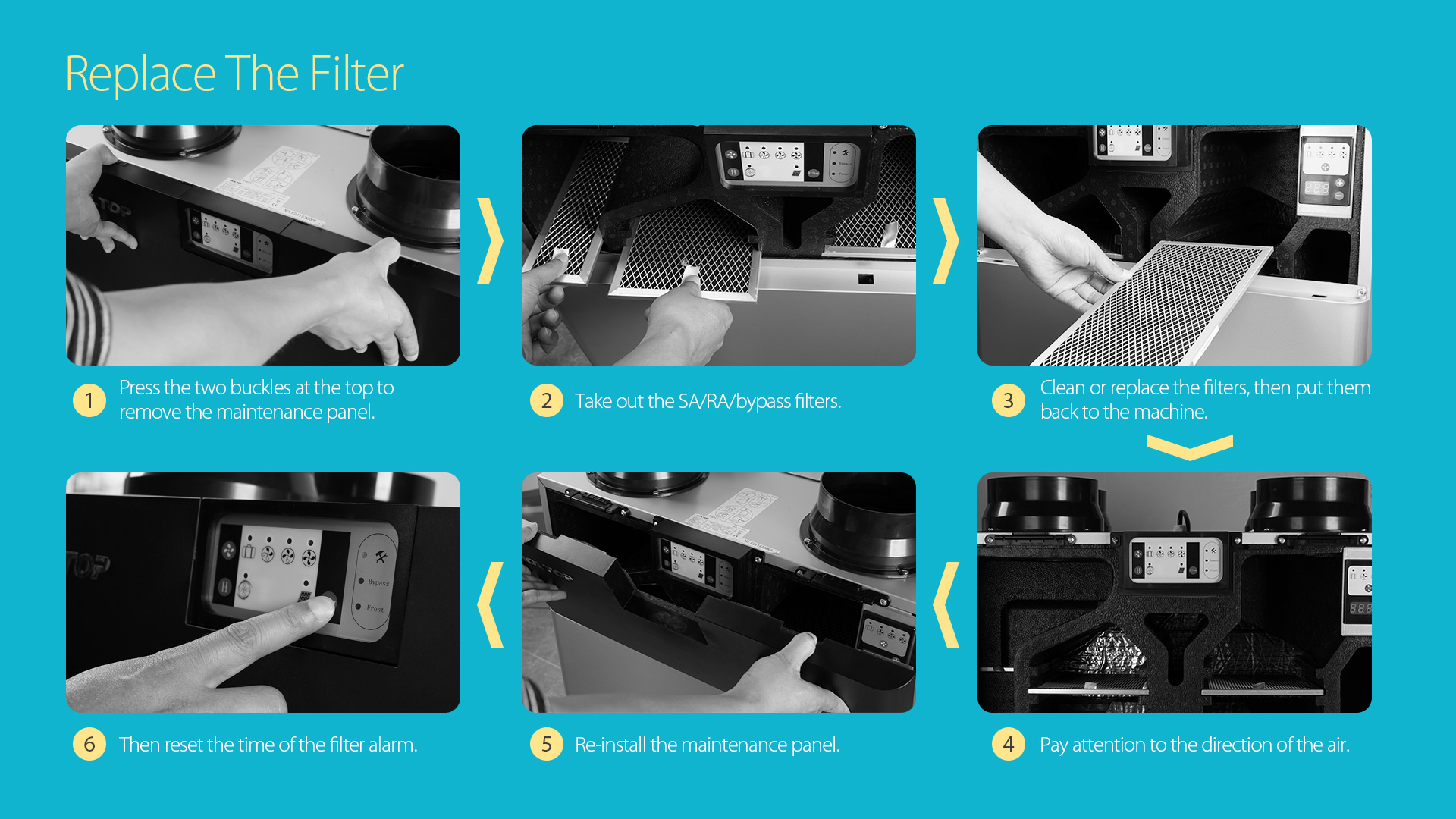

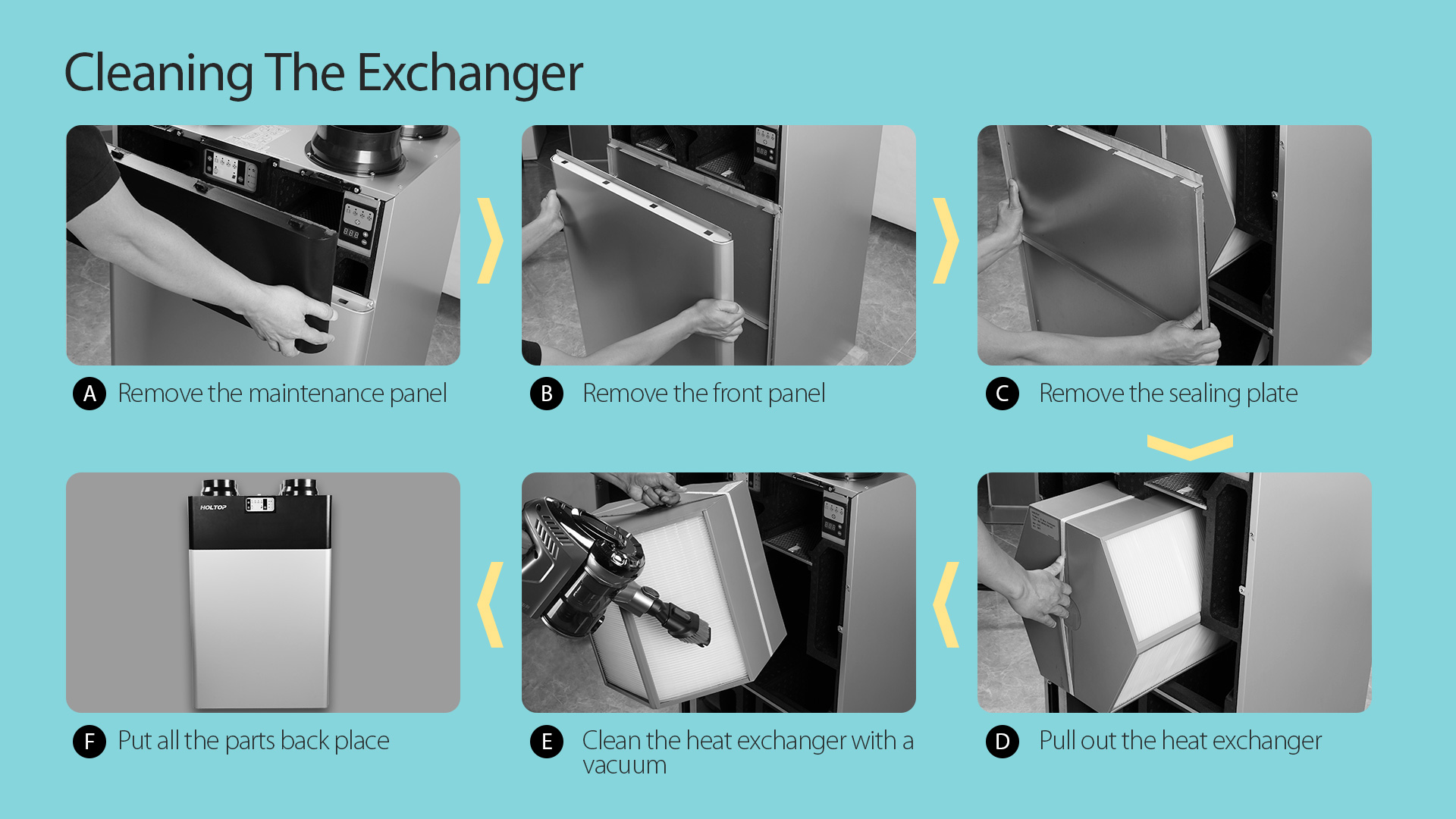

Maintenance Tips for Top Port Vertical Heat Recovery Ventilator

vertical heat recovery ventilator
vertical heat recovery ventilator

Product Specifications for Top Port Vertical Heat Recovery Ventilator

MODEL No. CFA 250T CFA 350T CFA 500T
Voltage [ V ] / Frequency [ Hz ] 230V/50Hz
Airflow [ m³/h ] 250 350 500
External Static Pressure [ Pa ] 130 150 160
Temperature Efficiency at Rated Airflow [ % ] 85 85 85
Max Temperature Efficiency [ % ] 95 95 95
Rated Power [ W ] 170 320 480
Noise [ dB(A) ] 35 37 39
Energy Efficiency Class A A A
Weight [ kg ] 40 40 50

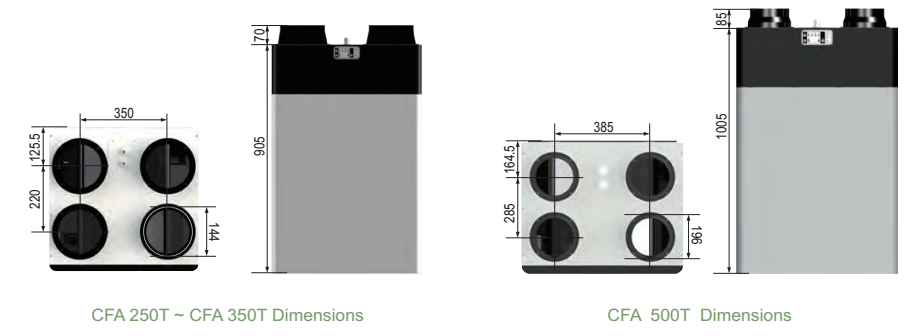

Product Size for Top Port Vertical Heat Recovery Ventilator

vertical heat recovery ventilator
